2019
A combined keyboard and mouse with custom U.I. to empower the people with one arm amputation.
Around 15% of the world's population suffers from a medical ailment that interferes with their way of life. The majority of these conditions are incurable. There are also certain items available for consumers to help them do their everyday tasks. However, there is little investigation in the product for activities beyond than everyday tasks (such as certain leisure activities), thus they feel left out. Evo bridges that gap and delivers it as empowering product for the user group.
Skills
UI & UX, Product Design, Industrial Design, Research, wireframing, Prototyping, Ergonomics
Tools
Rhino, Solidworks, Illustrator, Figma, Photoshop, Keyshot
Discovery
Primary Research
Development
User Interface
USA
India
Upper Limb
Up to elbow
70%
30%
One Arm Amputation
130,000
25,000
People with amputation
350,000
500,000
New amputation/year
50,000
23,500
Age Group
Upper Limb
Up to elbow
60%
40%
60%
under 21
10%
21-64 years
77.5%
22.5%
> 30 years
Under 30
Helping Aid
Prosthetics
Consoles
As prostheses become solely technical, more product design and assisting aid for most daily tasks will be accessible. Because there hasn't been much research into electronics for one-arm amputees, and the products that have been produced have been made in the past, new technology hasn't been utilized.
Products Available
Primary Research
Interviews
User
Rehabilitation center
welfare school
-
Lifting large items from the top shelf is difficult.
-
Have issues with items with various handles.
-
They don't attempt new things since they won't be able to utilize them or would find it tough to use them.
-
Having difficulty utilizing phones, laptops, and gaming consoles.
-
Difficulty in participating in outdoor sports such as cricket and basketball.
-
Having difficulty putting on clothing.
-
Inability to write adequately.
Key Insight
Everything gets harder to operate. One of the issues is being unable to make a knot, using a wallet, and handling goods. It was impossible to use any phone larger than 5 inches. While certain tasks, such as dressing, eating, and writing, were easier than others.
User Persona
-
25 Year Old.
-
One Arm Amputee.
-
Regular user of laptop or PC.
-
Have a Desk Job in a Company.
-
Have Personally Owned Laptop.
Development
Mood board
Inspiration board
Brainstorming and Ideation
Brainstorming and selecting the idea based that fits key requirements.
I selected the ideas for device the fulfill design requirement of as portable as a current mouse and which user will able to customized according to their work flow and can it should be comfortable for the user to use.
Concept development and form testing
Finalizing the concept by choosing the key element and features for the final product.
With rapid prototyping coming up with the different forms and testing that form which gave final result by asking the users to rank different prototype based on the comfort level and what are the flaws present in the all the options.
Taking feedback into account, a new form was developed and tested, and the best two designs were chosen, with the final concept chosen based on user feedback.
Less Visibility
20
Uncomfortable For
Typing
Keyboard with customization user interface
Right Click
Left Click
Hovering on the button
will make it scroll.
5 %tile
50 %tile
95 %tile
-
OLED screen
-
1080p HD resolution
Hap-tic Touch
-
Wireless bluetooth connection
-
2000mAh Rechargeable Battery
Proof Of Concept
Final form

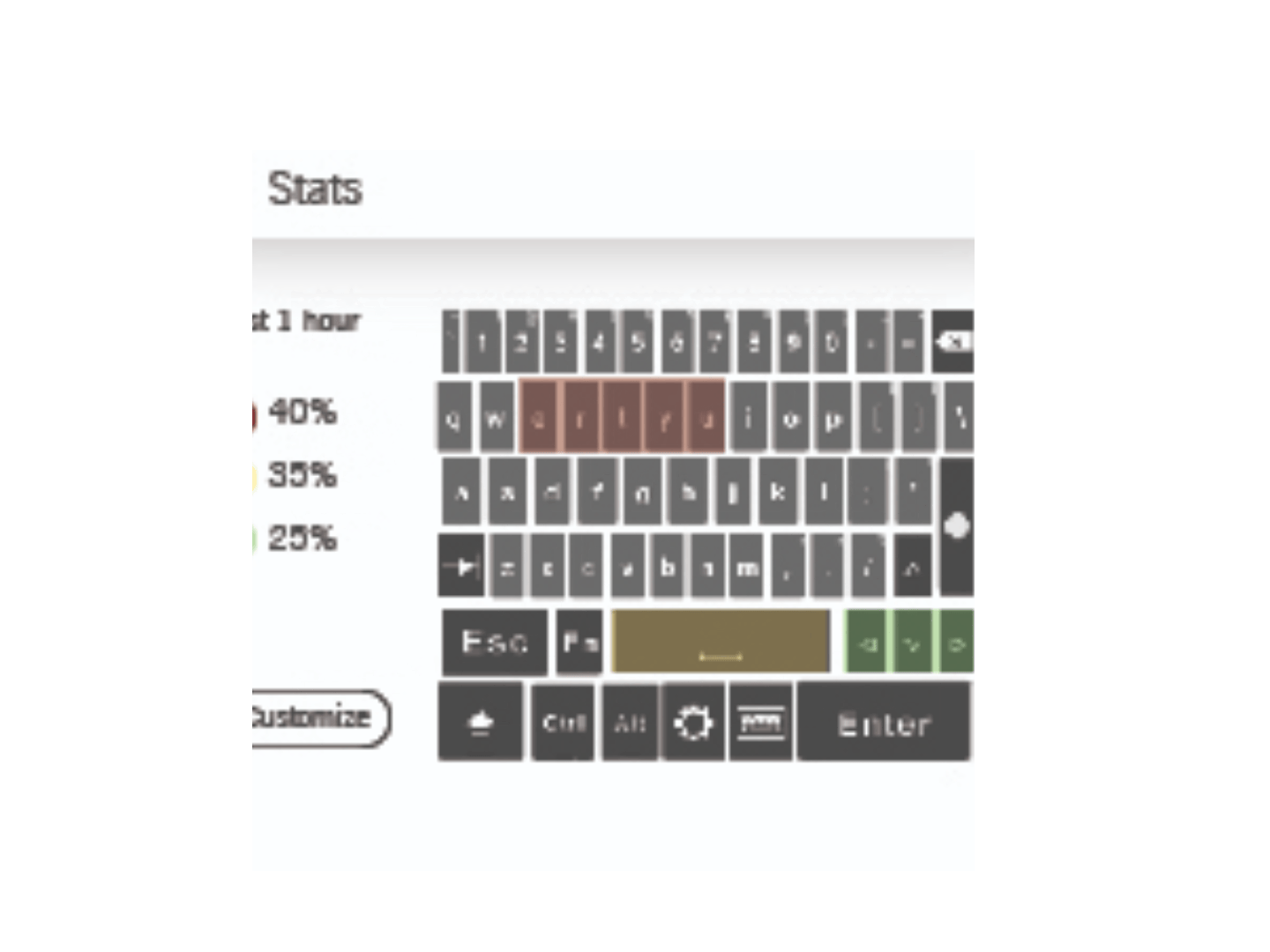

User Interface
As the keyboard is virtual, the interface may be customized to the user's needs and work. Giving it more room for growth in the future.
User interface monitor most used keys and functions by the user and come up with most optimum and customization functions r to make it more efficient for the user.
Based on the users reach the mouse registers the area for which the click functions are to be allocated.
Evo can connect wireless with Bluetooth as well as with the wired attachment so that it can be connected with maximum devices
Color Options
